Spectrophotometer

  • UV752 UV-Visible Spectrophotometer – Doryang

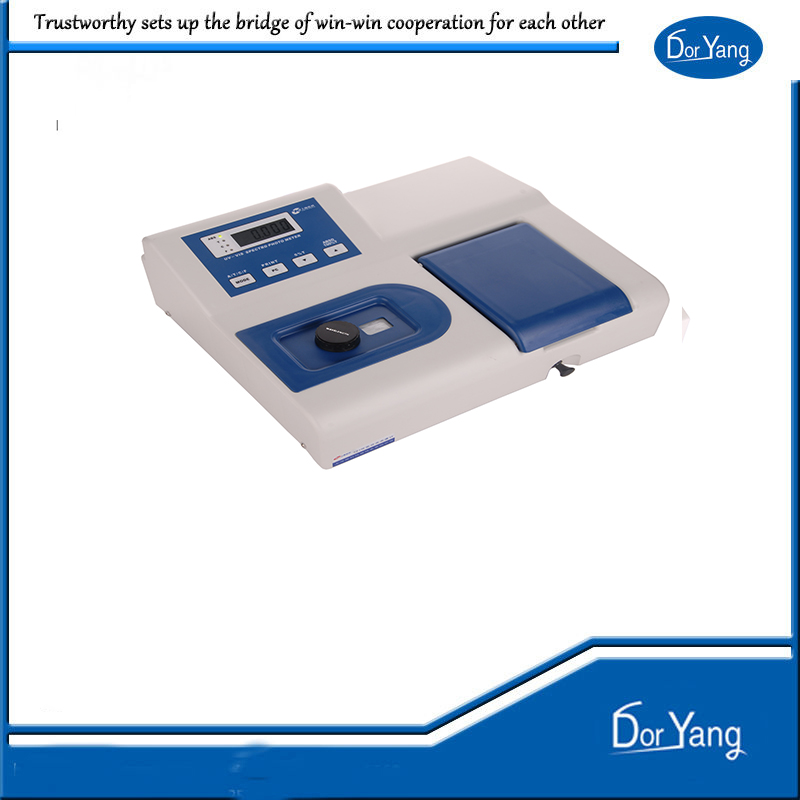

UV752 UV-Visible Spectrophotometer – Doryang

UV752 UV-Visible Spectrophotometer – Doryang

  • Product description: It is designed for precise measurement of absorbance and transmittance in the ultraviolet and visible light spectrum, making it suitable for applications in laboratories.
  • INQUIRY

This instrument is widely used in various industries, including medical and healthcare, clinical testing, biochemistry, petrochemicals, environmental protection, quality control, forensic investigations, inspection and quarantine, forestry, geological exploration, and food testing. It is one of the commonly used analytical instruments in physical and chemical laboratories.

Instrument Features:

  1. Spacious sample compartment accommodates 5-100mm cuvettes.
  2. Direct printer connectivity (optional) for printing test data.
  3. Key components are imported, ensuring measurement accuracy and precision.
  4. Automatic light shutter extends the lifespan of the photoelectric sensor and simplifies instrument operation.

Technical Specification Comparison:

Model UV752 UV752N
Optical System Achromatic Czerny-Turner (1200L/mm grating)
Wavelength Range 195-1020nm 195-1100nm
Wavelength Accuracy ±2nm ±2nm
Spectral Bandwidth 5nm 4nm
Wavelength Repeatability 1nm 1nm
Stray Light ≤0.3%T ≤0.2%T @ 360nm
Photometric Accuracy 0.5%T 0.5%T
Photometric Repeatability 0.2%T 0.2%T
Photometric Range 0-200%T, -0.301-2.000A 0-200%T, -0.301-2.000A
Drift ≤0.2%T ≤0.1%T
Baseline Linearity ±0.004A/h @ 500nm ±0.002A/h @ 500nm
Noise 100% ≤0.3%T 100% ≤0.2%T
Stability ±0.004A/h @ 500nm ±0.002A/h @ 500nm
Operating Modes T, A, C T, A, C
Display Range 0-200%T, -0.3-2A 0-200%T, -0.3-2A
Display System 4-digit LCD display 4-digit LCD display
Zero Adjustment Automatic Automatic
Wavelength Drive Manual Manual
Printer (Interface) Optional thermal printer (parallel port) Optional thermal printer (parallel port)
Energy Source (Lamps) Imported tungsten lamp, imported deuterium lamp Imported tungsten lamp, imported deuterium lamp
Net Weight 12kg 12kg
Lamp Switching Method Manual Manual
