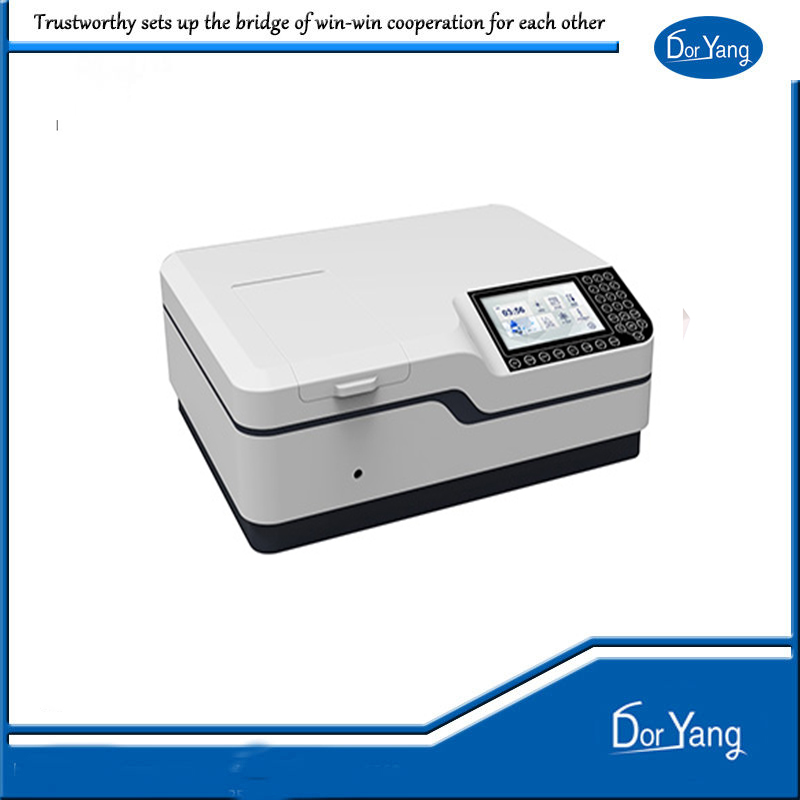

Spectrophotometer Double-Beam UV Visible U8 Xenon Lamp

Xenon Lamp Double-Beam UV-Vis Spectrophotometer

Instrument Description:

This instrument uses a pulsed xenon lamp as the light source, ensuring a minimum of seven years of normal operation without needing a replacement, significantly reducing user costs. It features high-performance optical, electronic, and structural design, advanced manufacturing processes, and a strict quality management system, delivering a high-level instrument tailored to user needs and habits.

With microcomputer control, data processing, and a large color display, the graphical interface and user-friendly menu make it easy to draw spectral graphs and analyze test data. The spectrophotometer supports photometric measurements, automatic spectral scanning, quantitative analysis, and kinetic spectrophotometric analysis. It offers high sensitivity, precise analysis, powerful spectral data processing capabilities, and an intuitive Chinese-English user interface. Its sleek and modern design further enhances the user experience.

Instrument Features:

1. Fast and Convenient: The instrument is ready to use immediately upon startup with no warm-up time, eliminating the 30-minute wait required by traditional spectrophotometers. The pulsed xenon lamp lasts up to seven years, reducing maintenance costs and eliminating concerns about frequent light source replacements. It is also environmentally friendly, producing no secondary pollution or health hazards.
2. 7-inch TFT Full-Color LCD Display: Features Omron soft-touch buttons for a comfortable user experience. The large display provides direct visualization of scanning curves and spectra, allowing users to complete all measurements without a computer.
3. USB Storage Support: Measurement data can be exported directly to a USB drive in various formats (Excel, TXT, BMP, CSV, QUA), allowing easy report editing on a PC without additional software. This saves lab space and enhances convenience.
4. Data Output Options: Includes RS-232C (for printing), USB drive (for connectivity), and USB HOST (for external storage), with a standard 32GB internal storage capacity.
5. Powerful Processing: Uses a 32-bit Cortex-M3 processor with a 120MHz main frequency, capable of storing up to 5,000 test data records or 500 work curves internally.
6. Suspended Optical System Design: Reinforced and thickened aluminum baseplate eliminates vibration and deformation effects on the optical system. The dual-layer structure separates optical and electronic components, facilitating maintenance while preventing interference, enhancing resolution and stability.
7. Low Signal-to-Noise Ratio: The instrument’s photoelectric signal detection system ensures greater stability.
8. Bilingual System (Chinese & English): Convenient for users worldwide.
9. Optional Rotating 8-Cell Automatic Sample Holder: Ensures precise light passage through the cuvettes, improving measurement accuracy.

Instrument Specifications:

• Display: 7-inch 1024×768 high-resolution color LCD screen
• Buttons: Omron long-life soft-touch buttons
• Optical System: Double-beam with built-in reference detector
• Light Source: Pulsed xenon lamp (1 billion flashes, 7-year lifespan)
• Detector: Silicon photodiode
• Spectral Bandwidth: Selectable 1nm or 2nm
• Wavelength Range: 190-1100nm
• Wavelength Accuracy: ±0.3nm
• Wavelength Repeatability: 0.1nm
• Wavelength Resolution: 0.1nm
• Stray Light: ≤0.05%T at 220nm and 360nm
• Photometric Accuracy: ±0.3%T
• Photometric Modes: Transmittance, Absorbance, Concentration, Energy
• Analysis Software: Supported

This spectrophotometer is an advanced, highly stable, and precise instrument suitable for a wide range of laboratory applications.
