Analytical Balance

  • Electronic Weighting Balance - Buy Now
Electronic Weighting Balance - Buy Now

Electronic Weighting Balance - Buy Now

  • Commercial Digital Mass Weighting Balance Supplier in China
  • Product description: Experience unmatched precision with our electronic weighing balance, featuring advanced load cell and strain gauge technology for accurate measurement.
  • INQUIRY
An electronic weighing balance also known as electronic balance, It is a precision instrument widely used in laboratory and shops for accurate measurement of mass. For weithing they use advanced load cell and strain gauge technology that utilize electromagnetic force or electrical resistance to convert the force exerted by an object into an electrical signal. These balances also feature a digital LCD or LED display, that clearly shows the measured weight with high accuracy with minimum value of 0.0001 grams. It is equipped with a taring function in which the balance allows users to subtract the weight of containers and ensure precise net measurement. The calibration function plays the key role in accuracy, while the weighting capacity depends on different size of applications ranging from milligrams to kilograms. Modern electronic weighing balance also offer data transfer and connectivity with USB or wireless interface for seamless integration with computers and printers. Balance user friendly features like draft shields and multi unit weighing makes them indispensable tools for scientific research, quality control, and industrial processes because exact mass determination is important.

What are the Different Modules of weight scales?

A weight scale, also known as a mass scale, weighing scale, mass balance, or weight balance, is a device used to measure the weight or mass of an object. These terms are often used interchangeably, depending on the context or type of scale.

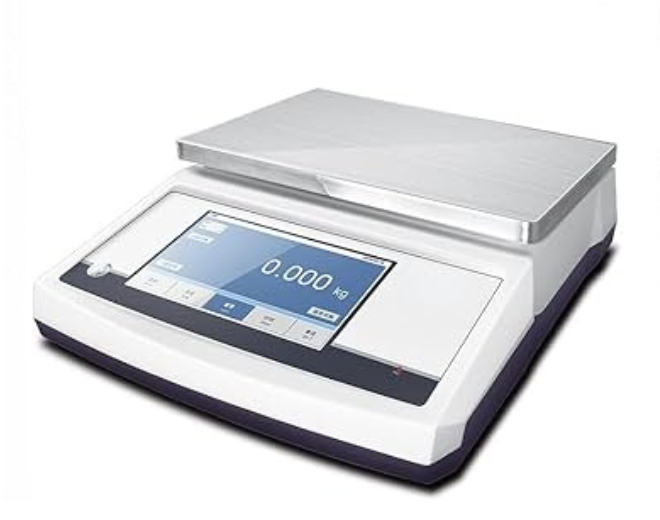

XY-MT Series Fully Automatic Internal Calibration

Product Specification

XY-MTA

XY-MTB

Product Model

XY10MTA

XY20MTA

XY30MTA

XY10MTB

XY15MTB

XY20MTB

XY30MTB

Maximum Weighting Range (kg)

10kg

20kg

30kg

10kg

15kg

20kg

30kg

Reading Accuracy (g)

1g

0.1g

Operating Temp

5-35

Repeatability Error.

±3d

Linearity Error

±3d

Stabilization Weighting Time

4s

Sensitivity Drift

±3d

Four Corner Error

±3d

Weighing Units

g, oz, ct...

Pan Size

305X230mm

Key Name

Touch Screen

Overall Dimension

395X118X320mm

Packing Size

415×165×430mm

Display Mode

7-inch HD display/7-inch touch screen (Liquid Crystal Display/LCD)

Output Port Interface

RS232/RJ45/USB...

In/output

Data export to excel, parameter import (USB)

Internal Calibration

Fully automatic time-triggered Internal calibration (option)

Test Function Weighing Mode

Counting, Checking, Percentage, Density

Function expansion

Internal Calibration / Under weighing / Remote Display...

Print Extension Printer

Label printing, label format, content setting, etc.

Weighing

Input: 220V 50HZ/110V 60HZ

Output:12V

Mechanical Part Machine

Input: 220V 50HZ/110V 60HZ

Output:12V

Battery

6V/4Ah Rechargeable Battery


Additional Functionalities

  • Internal calibration for enhanced accuracy.
  • Remote display and under-weighing options.
  • Data export to Excel for efficient reporting.

Inquiry for Electronic Weighting Balance

For further details or to inquire about the XY-MT Series Fully Automatic Internal Calibration Weighing Scales, please contact us. We can provide tailored solutions and address specific requirements to suit your operational needs.
