Doryang 251 Coating Thickness Gauge

Product description: Dor Yang 251 Coating Thickness Gauge The Dor Yang 251 Coating Thickness Gauge is an integrated eddy current portable coating thickness gauge. It enables fast, non-destructive, and precise measurement
INQUIRY

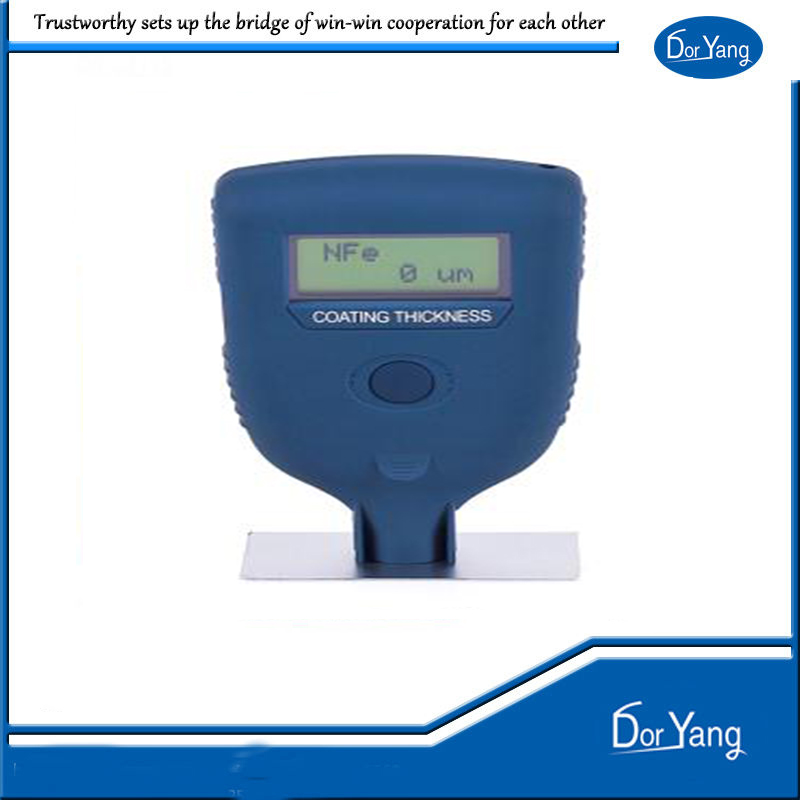

Dor Yang 251 Coating Thickness Gauge

The Dor Yang 251 Coating Thickness Gauge is an integrated eddy current portable coating thickness gauge. It enables fast, non-destructive, and precise measurement of coating and plating thickness. It is suitable for both laboratory and on-site engineering applications.
Widely used in manufacturing, metal processing, chemical industries, and commercial inspection, it is a professional instrument for material protection.

Functions & Features

The Dor Yang 251 adopts the eddy current principle for thickness measurement. It can non-destructively measure the thickness of non-conductive coatings (such as rubber, paint, and anodized films) on non-magnetic metal substrates (such as copper, aluminum, zinc, and tin).

It features an automatic shutdown function.

Technical Specifications

Parameter	Specification
Model	Dor Yang 251
Probe Type	N1
Operating Principle	Eddy Current
Measurement Range	0~1250μm
Minimum Resolution	1μm
Measurement Accuracy	Single-Point Calibration: ±(3%H+1) Two-Point Calibration: ±[(1~3%)H+1]
Testing Conditions
Minimum Curvature Radius (mm)	Convex: 5, Concave: 10
Minimum Measurement Area Diameter (mm)	Φ10
Basic Critical Thickness (mm)	0.3
Operating Environment
Temperature	0~40℃
Humidity	20%~90%
Power Supply	4 × AAA Alkaline Batteries (1.5V)
Dimensions	150×55.5×23mm (Main Unit)
Weight	120g
Standard Accessories	Main Unit, Standard Test Foils, Substrate, AAA Alkaline Batteries
