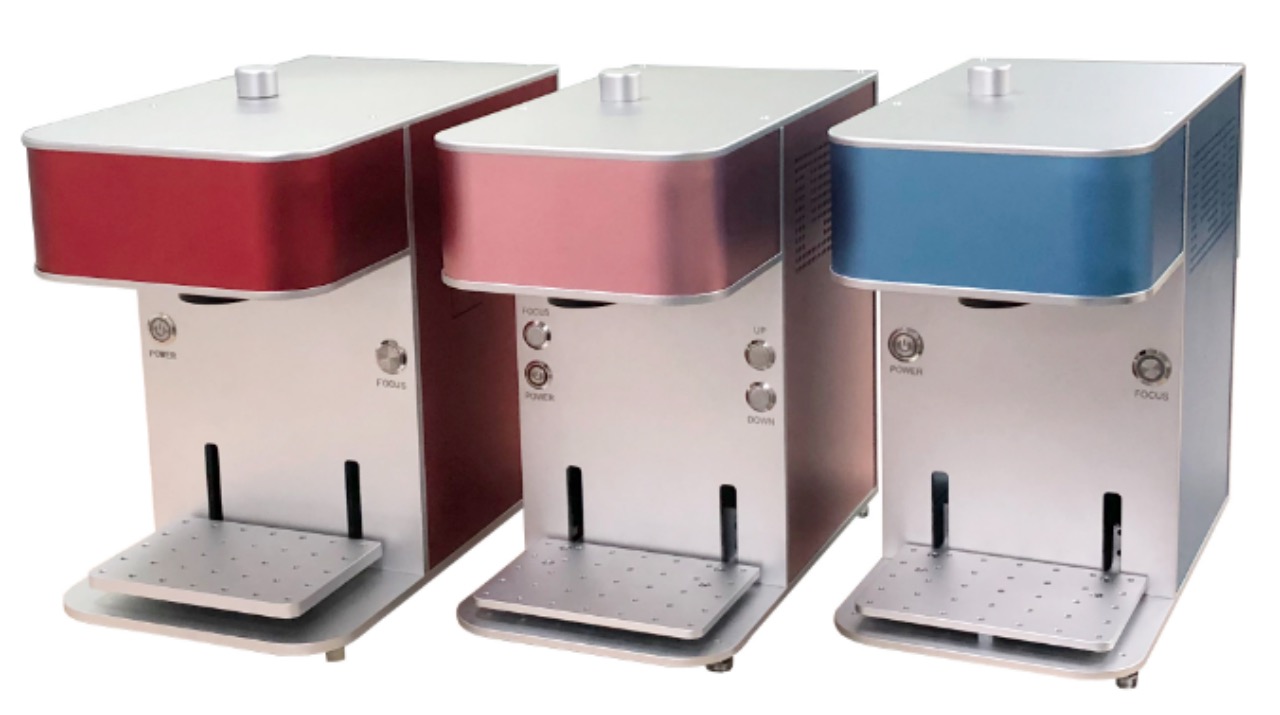

Mini Laser Marking Machine

Mini Laser Engraving Machine - Desktop Laser Engraver

Portable Laser Engraving Machine Supplier in China
Product description: Portable Laser Stone Engraving Machine is the best-selling product, also known as xtool Mini Desktop UV Laser Engraver.
INQUIRY

1.Applicable industry and materials:

1. All metals (including rare metals), engineering plastics, electroplate coating materials, coating materials, spraying materials, plastic rubber, epoxy resin, ceramics and so on.

2. Phone key, light penetration key, electronic parts and components, integrated circuit (IC), electrician electric appliance, communication products, sanitary wares, tool accessories, glasses and watches, jewelry, auto parts, buckles, kitchenware and stainless steel products industries.

2. Machine characteristics

Fiber Laser Marking Machine is a new generation laser marking machine system developed by applying the most advanced laser technology in the world. It uses the fiber laser to export the laser and the high-speed scanning vibrational mirror system to realize the marking function. The fiber laser marking machine has a high conversion efficiency of electro-optic up to above 20% (YAG 3%) which can save the power to a large extend. It employs the air cooling method and has an excellent heat dispersion performance. It does not need the air conditioning and water cycle system and the fiber can be coiled. Its volume is rather small and exquisite, and the quality of output laser beam is excellent, and furthermore there is no optics lens in the resonant cavity. It has many outstanding performances such as free regulation, free maintenance and high reliability, and therefore it can be used widely to mark in the aspects of plastic press key, plastic button, charger, light penetration key of the mobile, and it is specially applied to those fields that give high standards in the depth, smoothness and precision such as watch, mould industries and bitmap marking.

Parameters

Laser Wavelength	1064nm
Laser power	20W
Module Lifetime	≤100000H
Quality of Laser Beam	＜1.5M²
Laser spot	0.02mm
Frequency	10KHZ-100KHZ
Marking Line Speed	12000mm/s
Marking Speed	＞800 Character/s
Repetition Precision	±0.03mm
Minimum line width	0.01mm
Minimum Character Height	0.2mm
Marking Range	70*70mm
Marking Depth	0.1-0.5mm
Cooling Method	Air-cooled
Equipment Power	≤500W
Electricity Needs	110-230VAC,50-60HZ
Computer systems	Windows xp/win7/win10
Control Interface	USB
Weight/size	12KG；36cm20cm34cm
